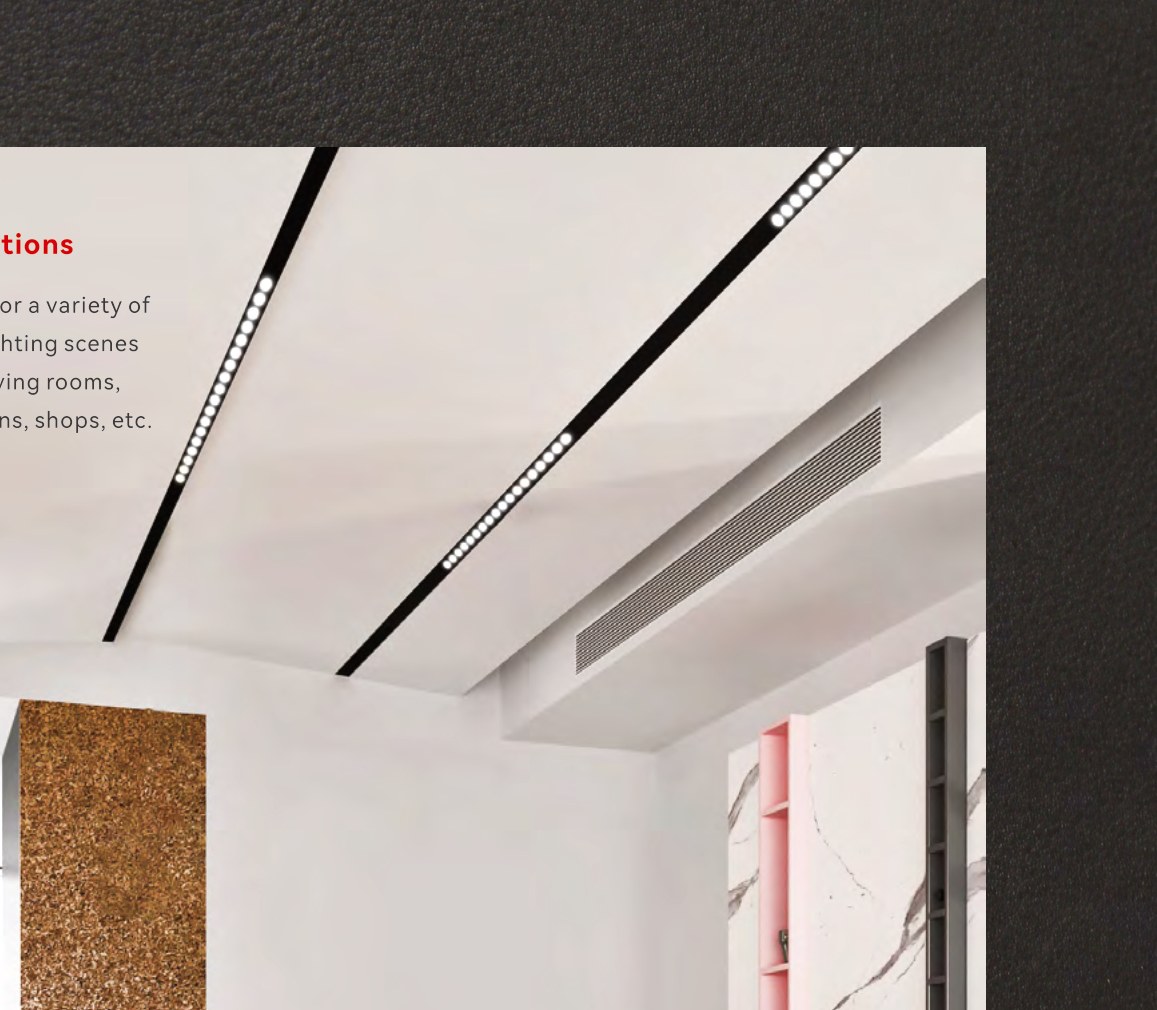

20# Recessed Magnetic Track System
20# Recessed Magnetic Track System
20# Series

20# Recessed Magnetic Track System

DC48V Recessed Magnetic Track | Full-Spectrum COB Spotlights + CRI ≥95 Grille | LTECH Matter | Tunable White 2700K-6500K — Supplier reference

CCT Range
2700K - 6500K Tunable White
Colour Rendering
COB Ra≥95 · SMD Ra≥90
Efficacy
135 lm/W
Output
2430 LM
Request BOM & Spec SheetsDatasheet (PDF)
01 — Why it qualifies as HCL

Circadian performance, stated as measurable numbers

Tunable white is a colour feature. Human Centric Lighting is a measurement obligation. Below are the quantities a lighting designer needs to model BY001 against WELL v2, CIE S 026 and IEC TR 63158 — including the ones still awaiting third-party verification.

Melanopic response across the tuning range

2700
3000
3500
4000
5000
5700
6500
Below WELL v2 L03 daytime threshold at the lowest setting
At 2700 K
0.45
M/P Ratio
225
Mel-EDI @ 500 lx

Move the control to see melanopic output across the tuning range.

M/P Ratio

Target >= 0.90 @ 5000K / <= 0.35 @ 2700K

Melanopic DER, CIE S 026:2018, across the tuning range

Design target

Percent Flicker

< 1% (IEEE 1789 NOEL)

Across the dimming range; IEEE 1789-2015 no-risk region

Design target

SVM

<= 0.40 (LTECH precision PWM)

Stroboscopic visibility measure (SVM); EU Ecodesign Regulation 2019/2020 limit 0.4 at full load; test method IEC TR 63158

Design target

Colour Shift

< 0.003 (full dimming range)

At 6 000 h, Ta 25 °C

Design target

SDCM

≤1 (COB) / ≤3 (SMD)

MacAdam ellipse, initial, ANSI C78.377

Design target

TM-30-20

Fidelity and gamut index, ANSI/IES TM-30-20

Design target

CRI Ra

Ra≥95 R9≥60 (COB) · Ra≥90 (SMD)

Measured at 4000 K reference point

Design target

Glare · UGR

4H8H, transverse viewing

Design target

SUMLINK Verified — values marked Design target are engineering design values from the driver and LED platform specification, not yet confirmed by independent laboratory report. Verified values are backed by a test report available on request. We publish the distinction rather than the marketing number.
[{"k": 2700, "mp": 0.35, "edi": 175, "note": "Deep warm. Evening and after-hours — M/P at its minimum, below the WELL v2 daytime threshold."}, {"k": 3000, "mp": 0.42, "edi": 210, "note": "Residential warm white. Below the WELL v2 daytime threshold; dining and lounge settings."}, {"k": 3500, "mp": 0.52, "edi": 260, "note": "First step that clears the WELL v2 daytime threshold at 500 lx horizontal (EDI ≥ 250)."}, {"k": 4000, "mp": 0.64, "edi": 320, "note": "Neutral reference point. Colour metrics on this page are stated at 4000 K."}, {"k": 5000, "mp": 0.9, "edi": 450, "note": "Morning activation target (M/P ≥ 0.90) — alerting daylight white for task-dense hours."}, {"k": 5700, "mp": 1.0, "edi": 500, "note": "High circadian stimulus; typical mid-morning peak in a program schedule."}, {"k": 6500, "mp": 1.1, "edi": 550, "note": "Maximum melanopic output. Use in short bursts, not as an all-day setting."}]

02 — Selection

Model selection

Per-SKU dimensions and profiles are released with the BOM. Below is what is confirmed today.

Finish ● Black ○ White · All models 2700–6500 K

ModelPowerSize (mm)CCTCRIBeam Angle
20GRFD12L6W137x57x132700K – 6500K Tunable White≥9515/24/36
20GRFD16L12W217x57x132700K – 6500K Tunable White≥9515/24/36
20GRFD4L18W308x57x132700K – 6500K Tunable White≥9515/24/36

POWER

18W

FLUX

2430 LM

CCT

2700K - 6500K Tunable White

ENVELOPE

Track: 20mm width | Recessed installation

FINISH

Matte Black | Button: Red / Blue / Black

Individual model dimensions, mounting type and per-SKU datasheets are issued on request while the model schedule is finalised.

Request the model schedule

03 — Verification

Full specification

Single source of truth. Nothing here is repeated elsewhere on the page.

Photometric
01
Luminous flux
2430 LM
Efficacy
135 lm/W
CCT range
2700K - 6500K Tunable White
Chromaticity
≤1 (COB) / ≤3 (SMD)
CRI Ra
Ra≥95 R9≥60 (COB) · Ra≥90 (SMD)
R9
R9 ≥60 (COB spotlight) / R9 ≥50 (SMD linear) — Design target
Duv
< 0.003 (full dimming range)
Distribution
15 / 24 / 36 degrees
Circadian & visual comfort
02
Melanopic DER
Target >= 0.90 @ 5000K / <= 0.35 @ 2700K
Percent flicker
< 1% (IEEE 1789 NOEL)
SVM
<= 0.40 (LTECH precision PWM)
Electrical & control
03
Power
18W
Protocol
LTECH Matter over Thread (2CH tunable white) — Supplier reference
Dimming range
0.1% - 100% (LTECH Matter over Thread)
Physical & installation
04
Finish
Matte Black | Button: Red / Blue / Black
Dimensions
Track: 20mm width | Recessed installation
IP rating
IP20
Lifetime, compliance & warranty
05

05 — Resources

Downloads

Product datasheet
AVAILABLE ON REQUEST
IES / LDT photometric files
AVAILABLE ON REQUEST
Installation & control-device wiring
AVAILABLE ON REQUEST
BIM / Revit family
AVAILABLE ON REQUEST
Test reports (Verified metrics)
AVAILABLE ON REQUEST
Warranty & compliance
AVAILABLE ON REQUEST

Specifying this fixture on a live project?

Send the room schedule — we return a BOM, driver and control topology, and the spec sheets for each SKU.

Request BOM & Spec SheetsTalk to a specifier
