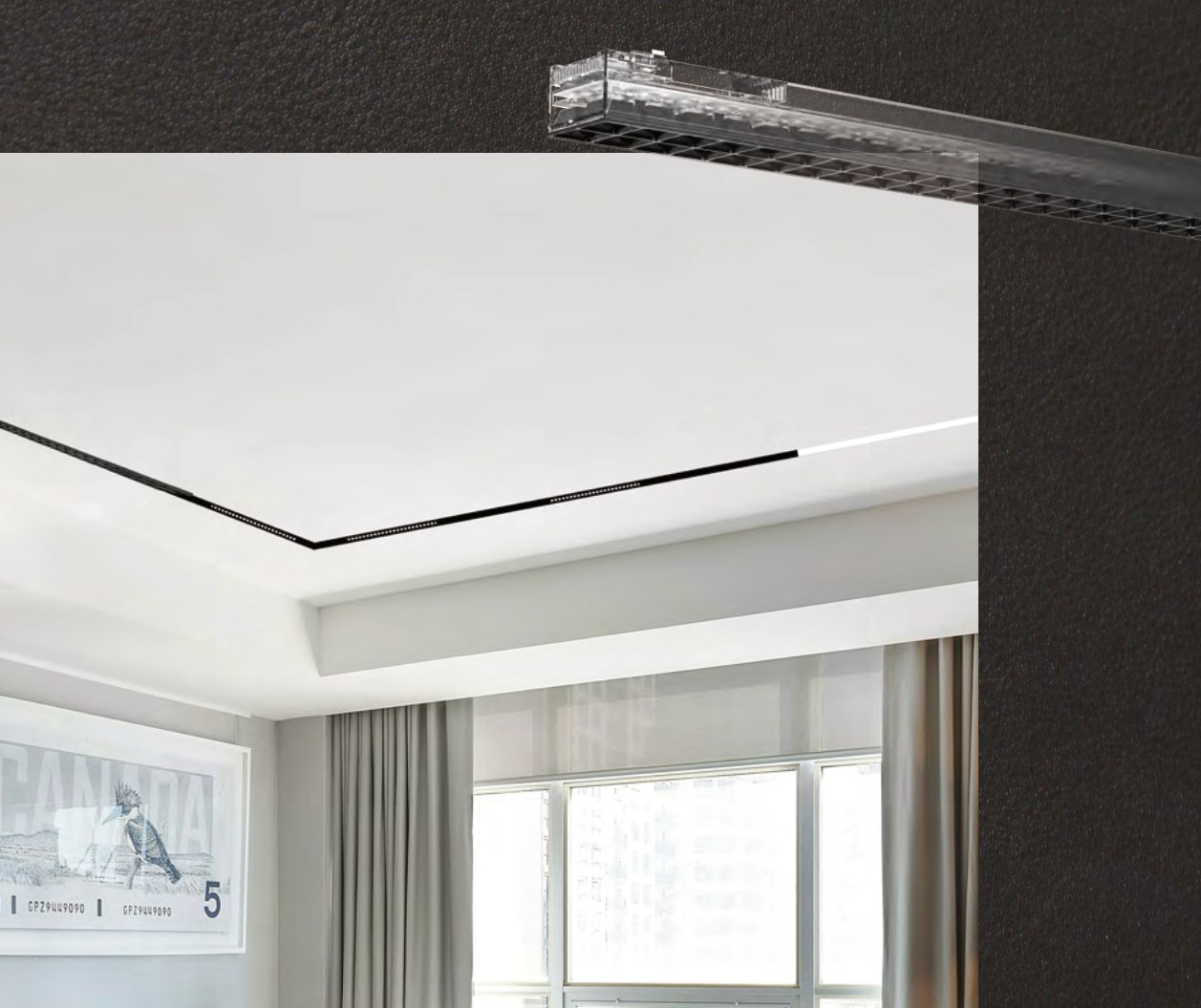

60# Magnetic Track Linear Light
60# Magnetic Track Linear Light
60# Series

60# Magnetic Track Linear Light

60mm Magnetic Track Linear | CRI ≥95 Tunable White | LTECH Matter | Office & Commercial

CCT Range
2700K - 6500K Tunable White
Colour Rendering
CRI ≥95
Efficacy
170 lm/W
Output
5100 LM
Request BOM & Spec SheetsDatasheet (PDF)
01 — Why it qualifies as HCL

Circadian performance, stated as measurable numbers

Tunable white is a colour feature. Human Centric Lighting is a measurement obligation. Below are the quantities a lighting designer needs to model BY001 against WELL v2, CIE S 026 and IEC TR 63158 — including the ones still awaiting third-party verification.

Melanopic response across the tuning range

2700
3000
3500
4000
5000
5700
6500
Below WELL v2 L03 daytime threshold at the lowest setting
At 2700 K
0.45
M/P Ratio
225
Mel-EDI @ 500 lx

Move the control to see melanopic output across the tuning range.

M/P Ratio

With Bridgelux TW COB + LTECH dual-channel driver: Target ≥0.90 @ 5000K / ≤0.35 @ 2700K — Design target

Melanopic DER, CIE S 026:2018, across the tuning range

Design target

Percent Flicker

< 1% (LTECH Matter over Thread driver, IEEE 1789 NOEL)

Across the dimming range; IEEE 1789-2015 no-risk region

Design target

SVM

<= 0.40 (LTECH precision PWM)

Stroboscopic visibility measure (SVM); EU Ecodesign Regulation 2019/2020 limit 0.4 at full load; test method IEC TR 63158

Design target

Colour Shift

< 0.003 over full dimming range (LTECH + Bridgelux)

At 6 000 h, Ta 25 °C

Design target

SDCM

<= 2 SDCM (standard)

MacAdam ellipse, initial, ANSI C78.377

Design target

TM-30-20

Fidelity and gamut index, ANSI/IES TM-30-20

Design target

CRI Ra

CRI ≥95

Measured at 4000 K reference point

Design target

Glare · UGR

4H8H, transverse viewing

Design target

SUMLINK Verified — values marked Design target are engineering design values from the driver and LED platform specification, not yet confirmed by independent laboratory report. Verified values are backed by a test report available on request. We publish the distinction rather than the marketing number.
[{"k": 2700, "mp": 0.35, "edi": 175, "note": "Deep warm. Evening and after-hours — M/P at its minimum, below the WELL v2 daytime threshold."}, {"k": 3000, "mp": 0.42, "edi": 210, "note": "Residential warm white. Below the WELL v2 daytime threshold; dining and lounge settings."}, {"k": 3500, "mp": 0.52, "edi": 260, "note": "First step that clears the WELL v2 daytime threshold at 500 lx horizontal (EDI ≥ 250)."}, {"k": 4000, "mp": 0.64, "edi": 320, "note": "Neutral reference point. Colour metrics on this page are stated at 4000 K."}, {"k": 5000, "mp": 0.9, "edi": 450, "note": "Morning activation target (M/P ≥ 0.90) — alerting daylight white for task-dense hours."}, {"k": 5700, "mp": 1.0, "edi": 500, "note": "High circadian stimulus; typical mid-morning peak in a program schedule."}, {"k": 6500, "mp": 1.1, "edi": 550, "note": "Maximum melanopic output. Use in short bursts, not as an all-day setting."}]

02 — Selection

Model selection

Per-SKU dimensions and profiles are released with the BOM. Below is what is confirmed today.

Finish ● Black ○ White · All models 2700–6500 K

ModelPowerSize (mm)CCTCRIBeam AngleInstall
60SPFD25R12W110x71x1892700K – 6500K Tunable White≥9515/24/36Track Surface Mount
60SPFD35R24W110x71x1892700K – 6500K Tunable White≥9515/24/36Track Surface Mount

POWER

12W / 24W

FLUX

5100 LM

CCT

2700K - 6500K Tunable White

ENVELOPE

Track: 60mm width | Surface mount (track surface mount)

FINISH

Matte Black | Matte White

Individual model dimensions, mounting type and per-SKU datasheets are issued on request while the model schedule is finalised.

Request the model schedule

03 — Verification

Full specification

Single source of truth. Nothing here is repeated elsewhere on the page.

Photometric
01
Luminous flux
5100 LM
Efficacy
170 lm/W
CCT range
2700K - 6500K Tunable White
Chromaticity
<= 2 SDCM (standard)
CRI Ra
CRI ≥95
R9
Duv
< 0.003 over full dimming range (LTECH + Bridgelux)
Distribution
15 / 24 / 36 degrees
Circadian & visual comfort
02
Melanopic DER
With Bridgelux TW COB + LTECH dual-channel driver: Target ≥0.90 @ 5000K / ≤0.35 @ 2700K — Design target
Percent flicker
< 1% (LTECH Matter over Thread driver, IEEE 1789 NOEL)
SVM
<= 0.40 (LTECH precision PWM)
Electrical & control
03
Power
12W / 24W
Protocol
LTECH Matter over Thread (2CH tunable white)
Dimming range
0.1% - 100% (LTECH Matter over Thread)
Physical & installation
04
Finish
Matte Black | Matte White
Dimensions
Track: 60mm width | Surface mount (track surface mount)
IP rating
IP20
Lifetime, compliance & warranty
05

05 — Resources

Downloads

Product datasheet
AVAILABLE ON REQUEST
IES / LDT photometric files
AVAILABLE ON REQUEST
Installation & control-device wiring
AVAILABLE ON REQUEST
BIM / Revit family
AVAILABLE ON REQUEST
Test reports (Verified metrics)
AVAILABLE ON REQUEST
Warranty & compliance
AVAILABLE ON REQUEST

Specifying this fixture on a live project?

Send the room schedule — we return a BOM, driver and control topology, and the spec sheets for each SKU.
