HCL Product — Specification Sheet

Overview

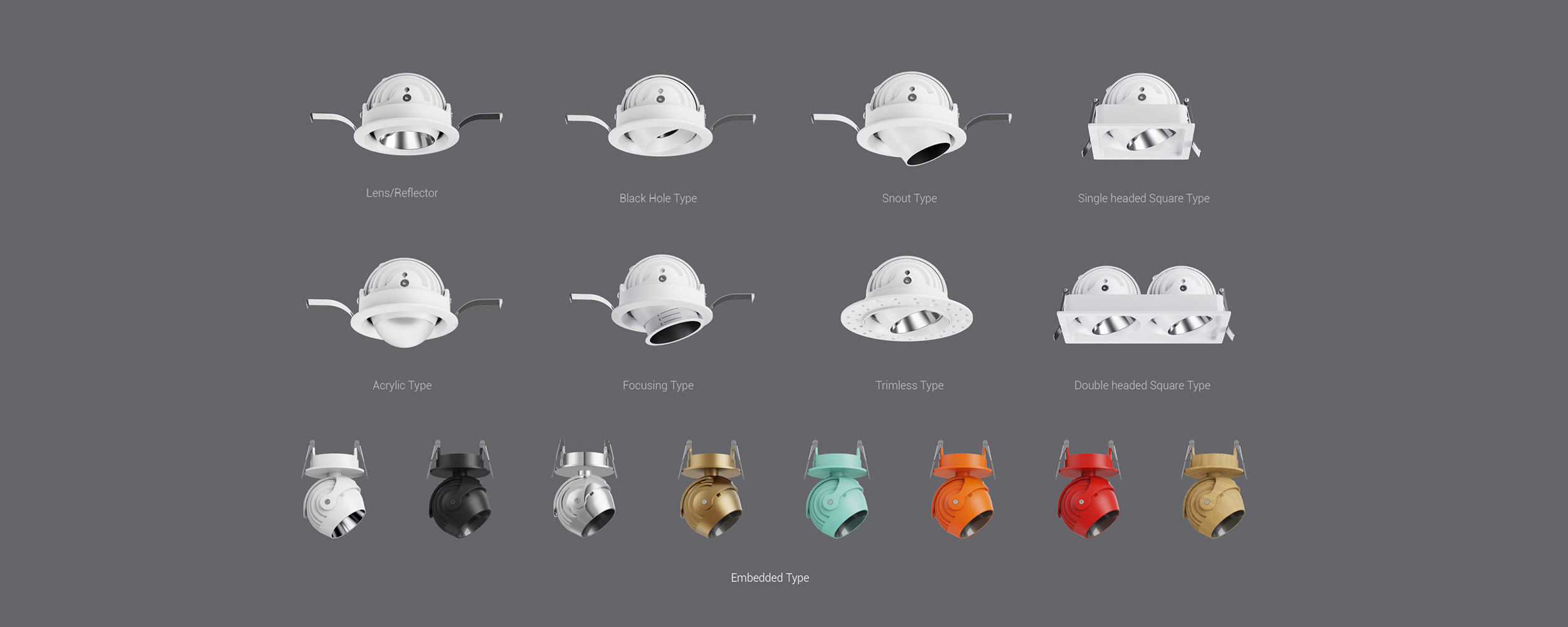

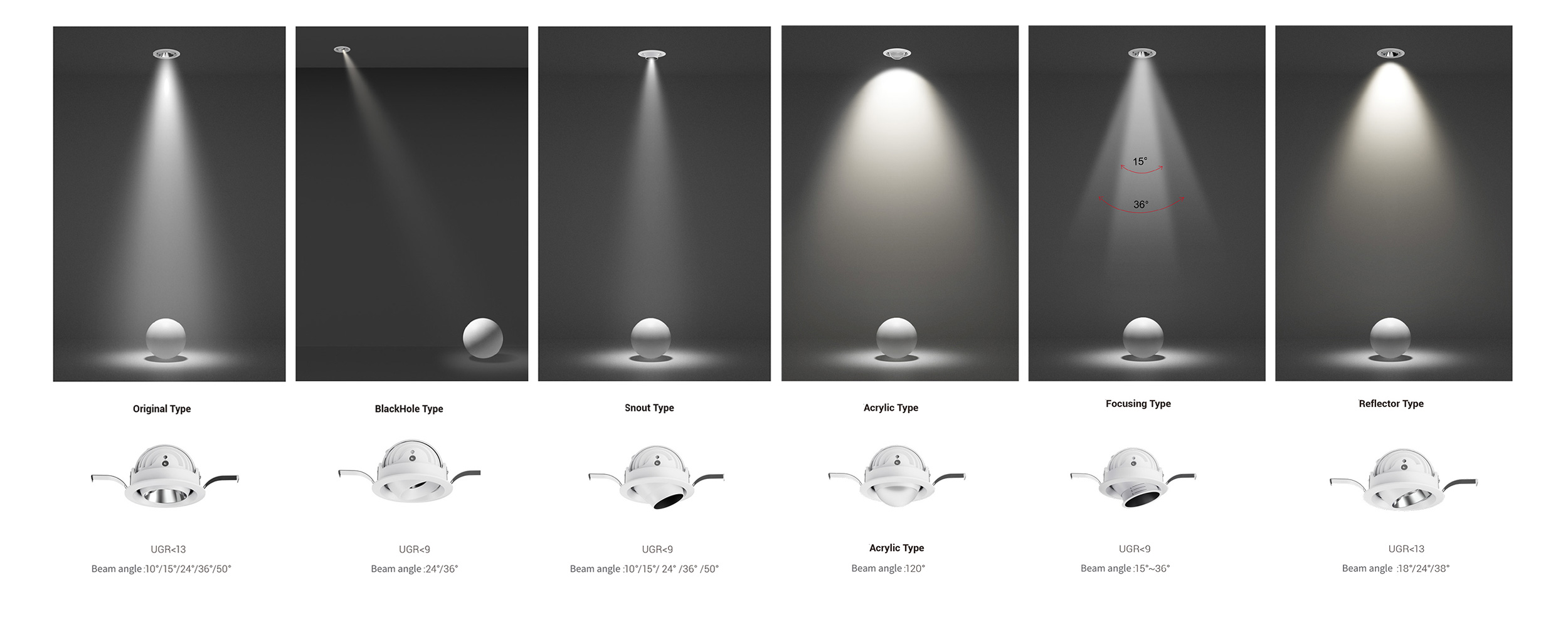

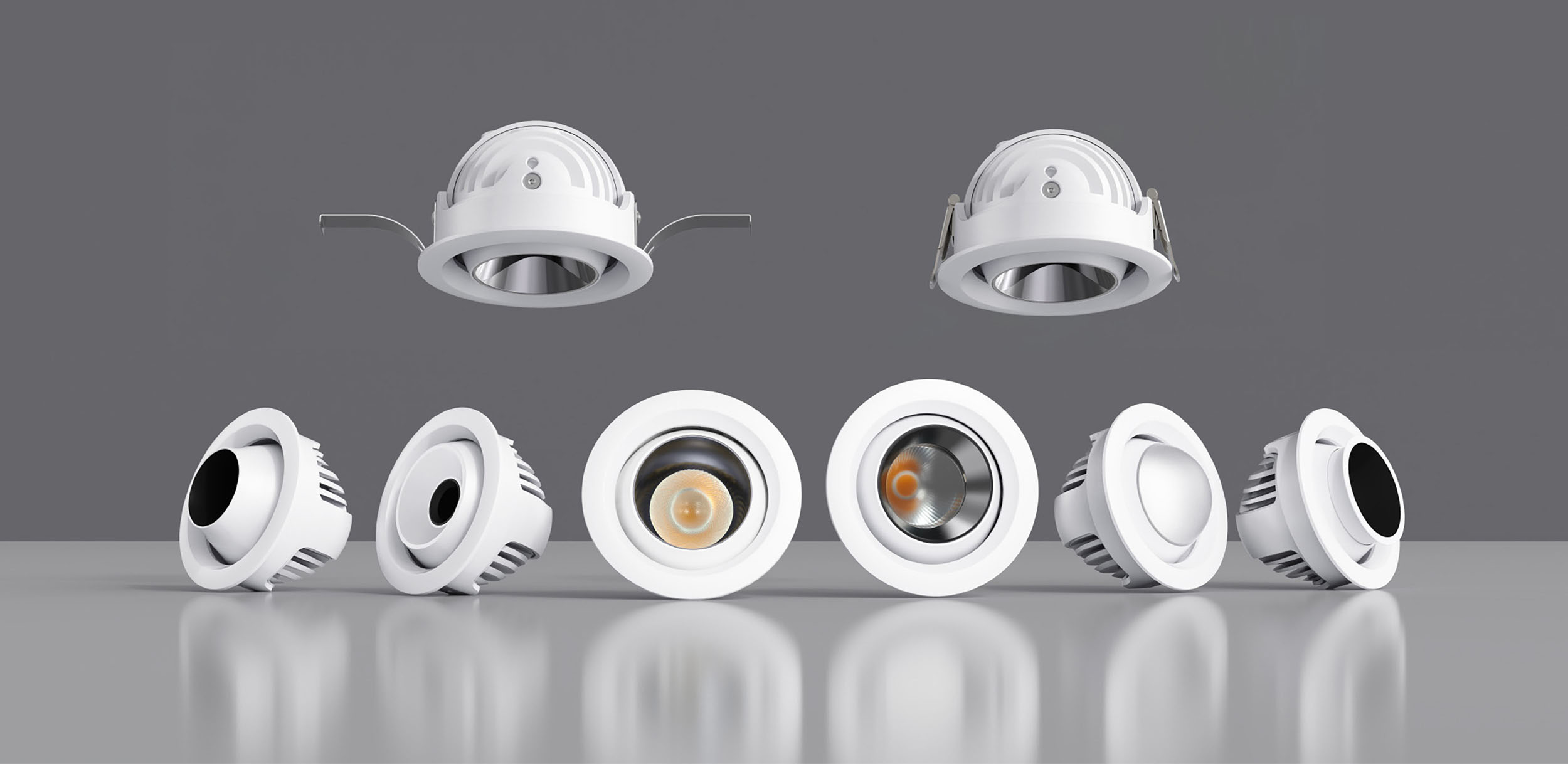

SUMLINK’s flagship recessed spotlight. Six interchangeable optical modules: standard lens (10°/15°/24°/36°/50°), anti-glare black baffle (UGR<9), angled tube (UGR<9), acrylic diffuser (120° flood), zoom focus (15°–36° continuous), and reflector cup. 355° horizontal × 30° vertical tilt. Five aperture sizes Ø55–Ø120mm (6W–38W). Anti-UV nano-coating reflector. CREE, 50,000h.

Series

Stella 斯特拉

CRI Rating

≥90

CCT Options

2700K / 3000K / 4000K / 5000K

Technical Specifications

Wattage

6W – 38W (5 aperture sizes)

Lumen Output

Efficacy

Voltage

AC 100–277V

CRI Rating

≥90

CCT Options

2700K / 3000K / 4000K / 5000K

Beam Angles

10° / 15° / 24° / 36° / 50° / 15°~36° zoom (interchangeable optics)

SDCM

IP Rating

IP20 / IP44

Driver Type

Power Factor

Dimensions

Ø55 / Ø65 / Ø75 / Ø95 / Ø120mm cutout · 8mm ultra-narrow bezel

Weight

Housing Material

Die-cast aluminium · CREE LED · 6 colour options

Finish Options

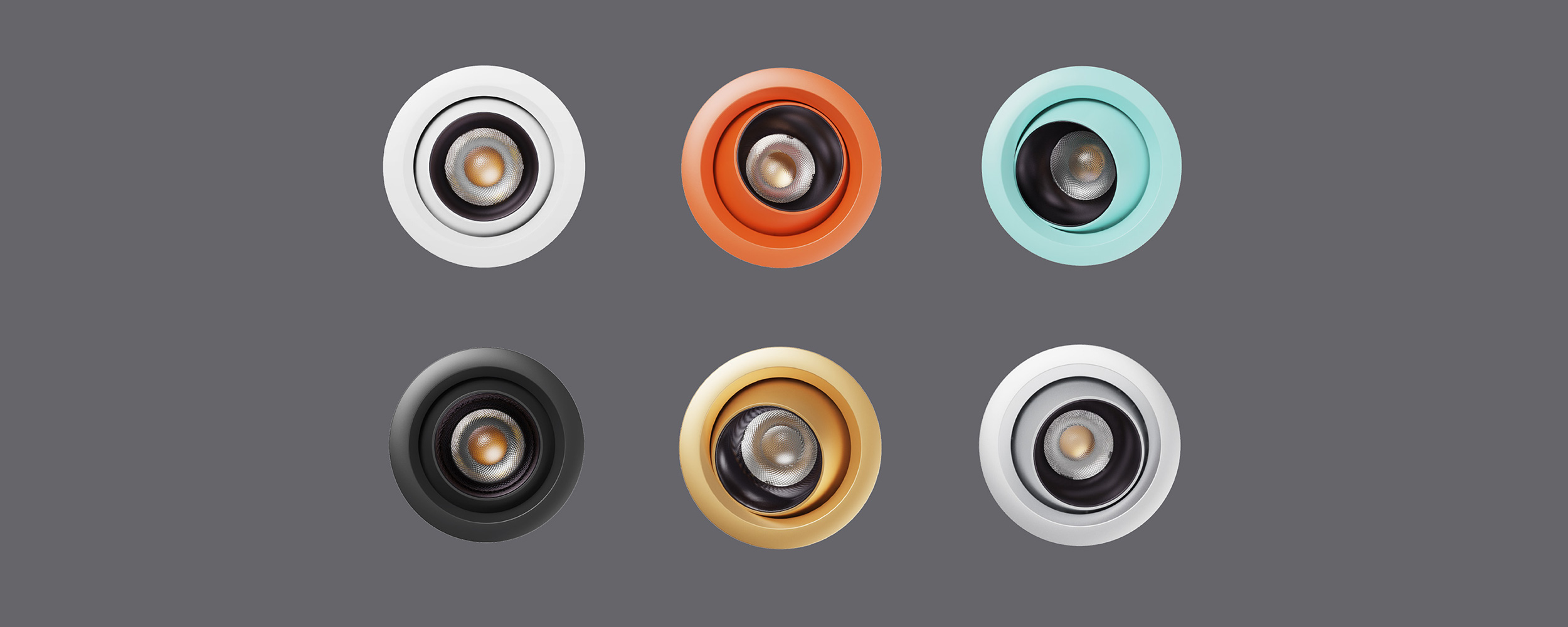

White / Black / Gold / Chrome / Gun Metal / Sand Gold

Operating Temp

MOQ

Sample Lead Time

Production Lead Time

HCL Performance Parameters

M/P Ratio

Pending SUMLINK Verified test

Flicker %

Pending SUMLINK Verified test

SVM

Pending SUMLINK Verified test

Δu'v' Color Shift

Pending SUMLINK Verified test

Stella Precision Spotlight Anti-Glare
